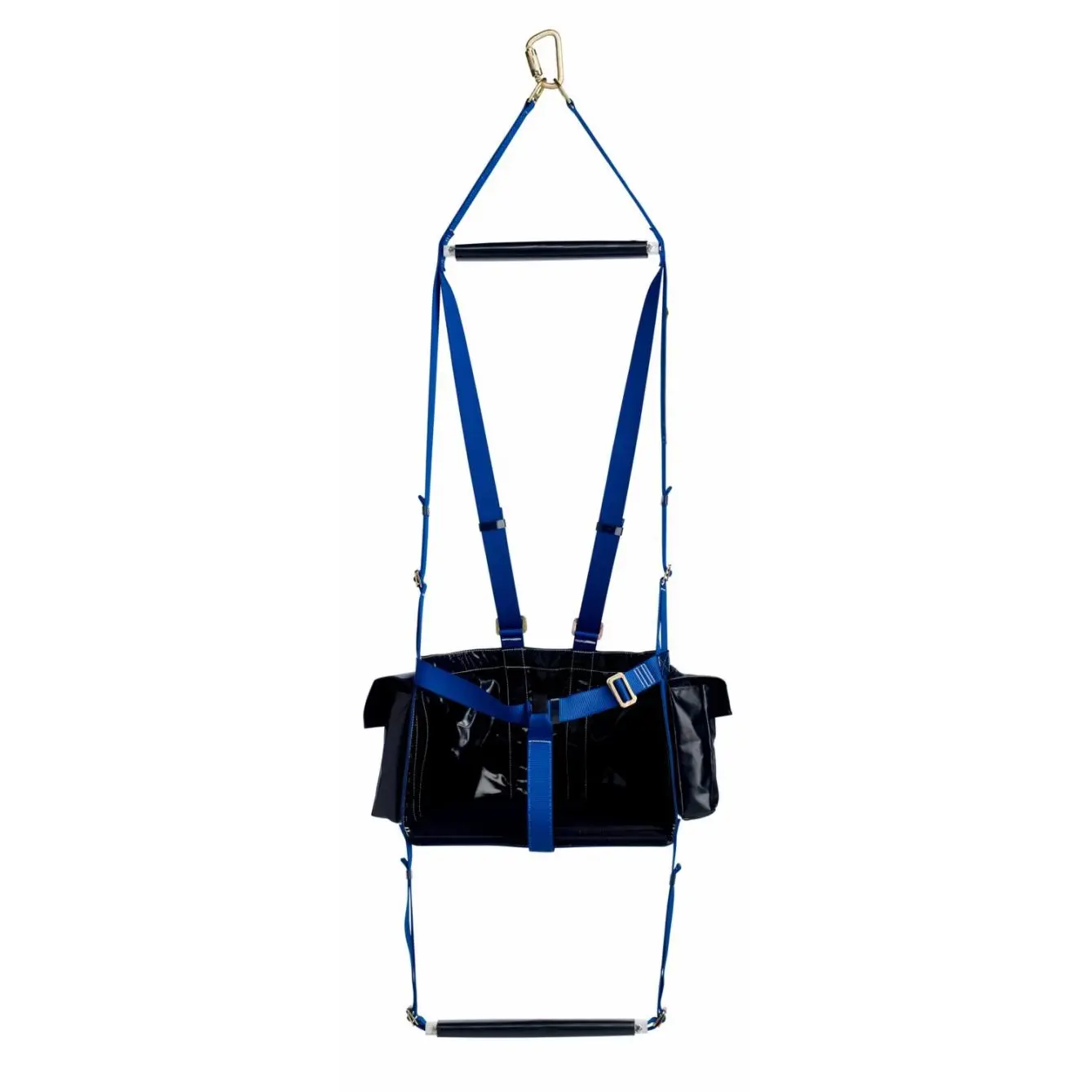

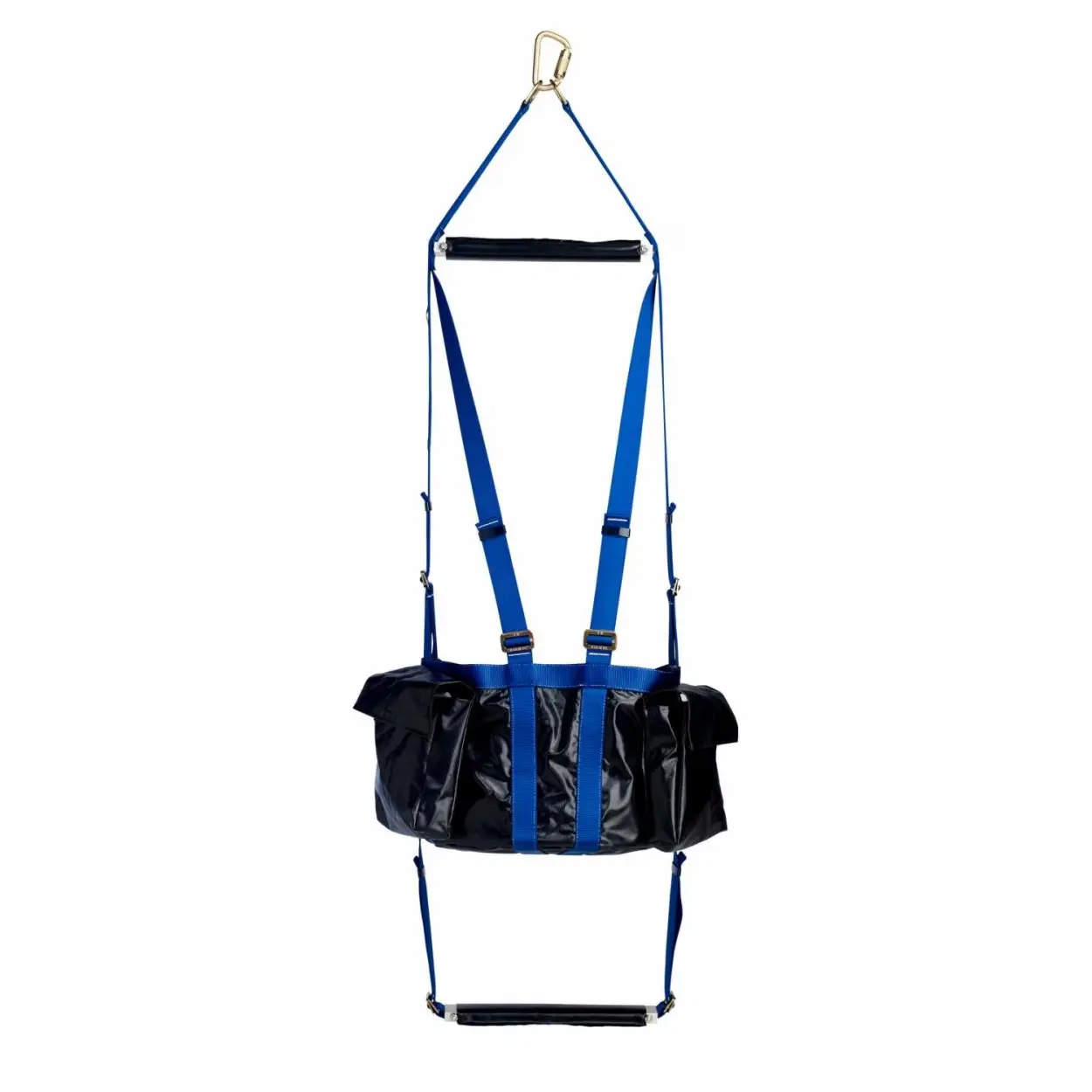

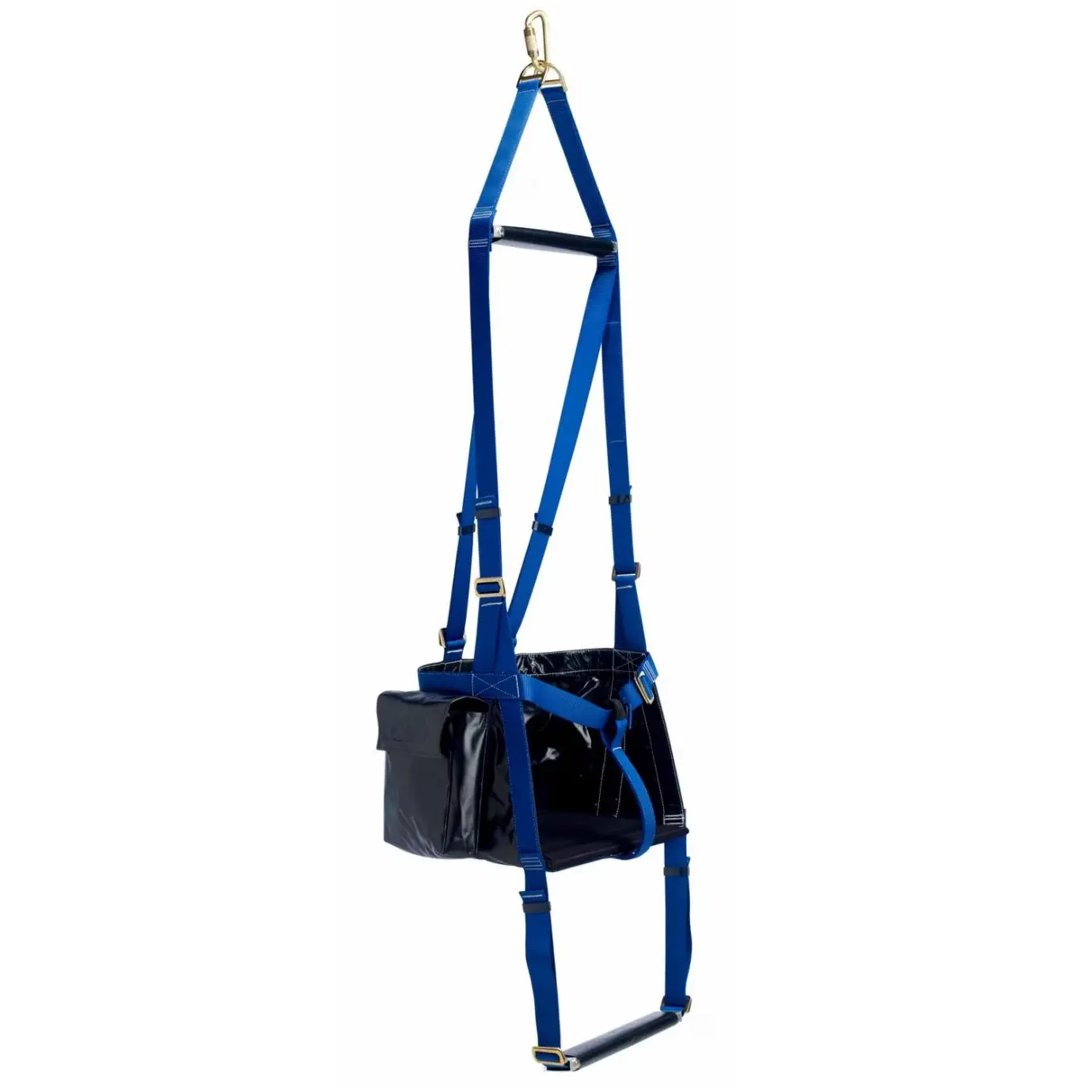

3M™ DBI-SALA® Suspended Workman’s Chair – 15 in x 18 in x 0.75 in
SKU: 1001378
The 3M™ DBI-SALA® Suspended Workman’s Chair provides durable, ergonomic support for workers during suspended or confined space tasks, offering comfort and safety with its compact design.
PRODUCT DESCRIPTION
3M™ manufactures a wide range of workseat accessories designed to keep workers comfortable and well-positioned while suspended. Our products range from rigid board seat styles to body-conforming web seat slings.
The 3M™ DBI-SALA® Seat Slings and Bosun’s Chairs can be appropriate for inspection work, window washing, painting, maintenance, oil and gas applications, along with other activities that require personnel to be suspended at height. All work seats should be used in combination with a full body harness and fall protection system.
FEATURES
- Intended for use with personal protective equipment, including fall arrest systems and other safety supplies
- Robust range of suspension seats designed for enhanced comfort while suspended
- Helps meet safety requirements for fall protection applications
SPECIFICATIONS
Belly Pad |
No |
Belt Type |
Waist |
Board/Seat Cushion |
Yes |
Board/Seat Material |
15-Ply Apple Plywood |
Brands |
DBI-SALA® |
Buckle Material |
Zinc Plated Steel |
Buckle Type |
Pass-through |
Case Quantity |
1 |
Connected Safety ID Equipped |
No |
D-ring Material |
Forged Steel |
D-ring Placement |
Double Suspension |
Dimensions |
15 in x 18 in x 0.75 in (38.1 cm x 45.7 cm x 1.90 cm) |
For Use With |
Full Body Harness & Anchor Point |
Max Free Fall Allowed |
Zero (no free fall permissible) |
Net Weight (Imperial) |
9.9 lbs. |
Net Weight (Metric) |
4.5 kg |
Product Color |
Blue |
Product Type |
Suspended Workman’s Chair |
Recommended Industry |
Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities |
Specifications Met |
Capital Safety Gen. Mfg. Req., OSHA 1910.66, OSHA 1926.502 |
Overall Length (Imperial) |
18 in |
Overall Length (Metric) |
47.72 cm |
Overall Width (Imperial) |
15 in |
Overall Width (Metric) |
38.1 cm |
Weight (Imperial) |
9.9 lbs. |
Weight (Metric) |
4.5 kg |
Weight Capacity (Imperial) |
420 lbs. |
Weight Capacity (Metric) |
190 kg |
